Custom CNC Machining Services for All Materials

Advanced CNC Machining Services: Material Versatility Meets Precision Manufacturing

1. Comprehensive Machine Shop Manufacturing Capabilities

As an ISO 9001:2015-certified machine shop manufacturing facility, we integrate cutting-edge technology with engineering expertise to deliver:

Full-Spectrum Processing: 3- to 5-axis CNC milling, Swiss turning, wire EDM, and surface grinding
Material-Agnostic Production: Machining expertise in ferrous/non-ferrous metals, engineering plastics, and exotics
Scalable Capacity: Prototyping to 50,000+ unit production runs
Digital Integration: CAD/CAM compatibility with SolidWorks, Fusion 360, CATIA, and STEP files
This infrastructure positions us uniquely among metal machine shops, enabling true design-to-part continuity for critical applications.

2. Unrivaled Material Machining Expertise

Our rapid CNC machine systems process over 12 material categories with specialized techniques:

Material Category	Key Alloys/Compounds	Specialized Processes
Aerospace Metals	Ti-6Al-4V, Inconel 718	Cryogenic machining, trochoidal milling
Medical-Grade	316LVM, PEEK, CoCr	Micro-milling (±5µm), electropolishing
Automotive	A380 Al, 4140 steel	Hard turning (HRC 60+), roller burnishing
Exotics	Tungsten, GlidCop®	Low-frequency vibration machining

Case Example: Machined oxygen sensor housings from zirconia ceramic requiring 0.8µm Ra finish and 0.005mm positional accuracy.

3. Advanced Processing Technologies

Beyond conventional milling, our machine shop manufacturing facility employs:

High-Speed Machining (HSM): 25,000 RPM spindles with acceleration >2g for aluminum thin-walls
Multi-Task Turning: Live tooling lathes performing milling/drilling during rotation
Wire EDM Precision: 0.02mm wire cutting hardened tool steel with ±0.003mm accuracy
Robotic Automation: Lights-out production with automated pallet changers

4. Client-Driven Custom Manufacturing

Our rapid CNC machine workflow centers on design flexibility:

Drawing-Based Production: Full GD&T compliance to ASME Y14.5 standards
DFM Optimization: Engineering feedback on draft angles, wall thickness, and tolerance stack-ups
Reverse Engineering: CMM-based digitization of legacy components
IP Protection: NDA-secured workflows with encrypted file transfers

5. Quality Assurance in Metal Machine Shops

Rigorous validation protocols ensure compliance:

First-Article Inspection: Full dimensional report per ISO 9001 requirements
Metrology Lab: Zeiss CONTURA CMM (1.9µm uncertainty), optical comparators
Material Verification: PMI testing, grain structure analysis
Surface Integrity: White light interferometry for Ra/Rz measurements

6. Industry-Specific Solutions

Aerospace: AS9100-compliant structural components with NADCAP heat treatment
Medical: FDA-validated surgical tools with biocompatible finishes
Energy: Corrosion-resistant valves per NACE MR0175
Robotics: Harmonic drive components with <30 arc-sec backlash

7. Rapid Prototyping to Production

Our rapid CNC machine capabilities accelerate development:

3-Day Quick-Turn Prototypes: Machined from actual production materials
Bridge Tooling: CNC-machined molds for 500-10,000 injection molding cycles
Production Ramp-Up: Seamless transition from prototype to volume runs

Experience Unmatched Manufacturing Flexibility
TopRapidMfg combines material expertise with advanced machine shop manufacturing technologies to transform your designs into precision components.

Explore Our Capabilities Today:

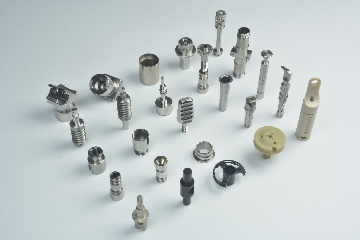

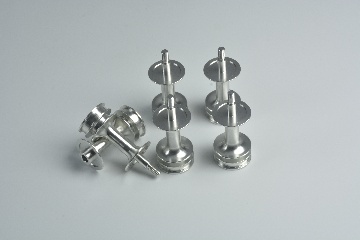

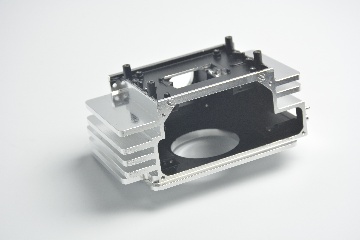

➤ Digital Portfolio: View 200+ CNC machined products across industries
➤ Material Library: Download machining guides for 50+ metals/plastics
➤ Instant Quoting: Get DFM feedback and pricing in <2 hours

Begin Your Project:
