Injection Mold Tooling Capabilities

Injection Mold Tooling Capabilities

Reliable injection mold tooling creation for custom injection molded parts. Get precise and outstanding custom injection molds to produce high-quality plastic parts.Take advantage of our commitment to quality, quick production, and competitive pricing.


Injection molding tooling	Injection Molding	Overmolding & Insert Molding
Injection molding tooling is at the heart of injection molding.Whether it's a complex application or simple part,plastic injection tooling design–determines the quality of the injection molding process and the parts produced.	Injection molding is a method to obtain molded products by injecting plastic materials molten by heat into a mold, and then cooling and solidifying them.	Insert injection molding is the process of molding or forming plastic parts around other, non-plastic parts, or inserts. The inserted component is most commonly a simple object, such as a thread or rod.

Plastic injection molding is one of the core businesses of Top rapid prototype. We can help you avoid the troubles of “insufficient capacity,”“uncertain design capability,” “unstable product quality,” and “untimely delivery” with our ten years of injection molding experience

Mold Class	Purpose	Shot Life	Tolerance
Class 105	Prototype Testing	Under 500 cycles	± 0.02mm
Class 104	Low-volume Production	Under 100.000 cycles	± 0.02mm
Class 103	Low-volume Production	Under 500.000 cycles	± 0.02mm
Class 102	Medium-volumeProduction	Medium to highproduction	± 0.02mm
Class 101	High-volume Production	Over 1,000,000 cycles	± 0.02mm

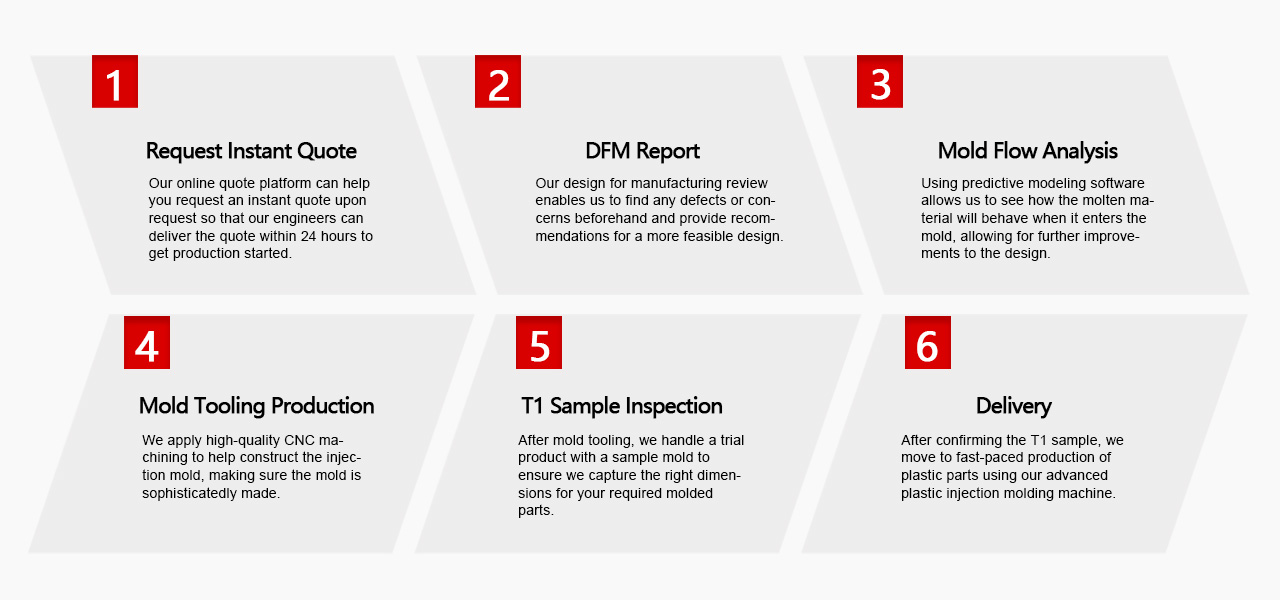

Injection Mold Tooling Processes

Top rapid prototype rapid prototype creates custom injection molds based on your unique specifications. Our mold tooling process is dependent on yourdesign. We use top-notch predictive modeling software to offer quality mold flow analysis to ensure adequate mold tooling production.From mold prototype development to sample inspection and delivery, we provide excellent technical support.

Advantages of Injection Molding with TOP rapid prototype

There are huge numbers of injection molding providers. Why should you choose us as your injection molding supplier?

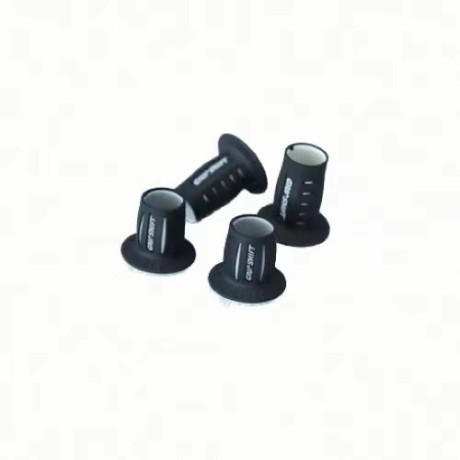

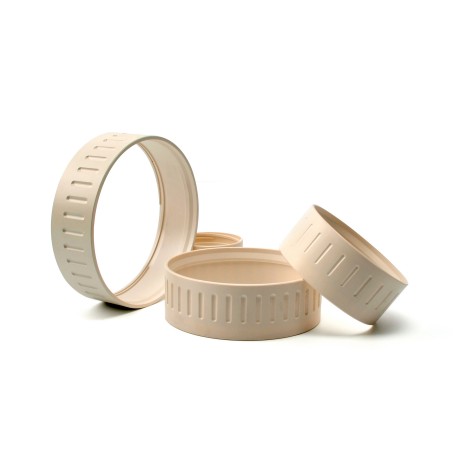

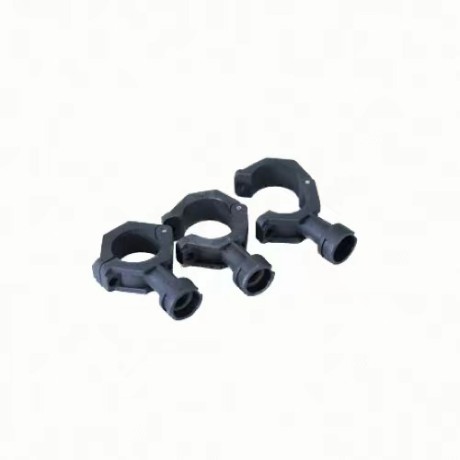

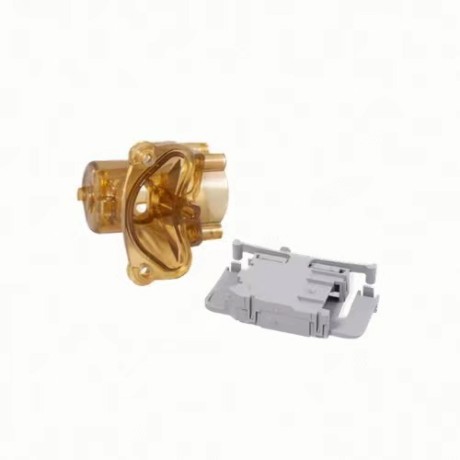

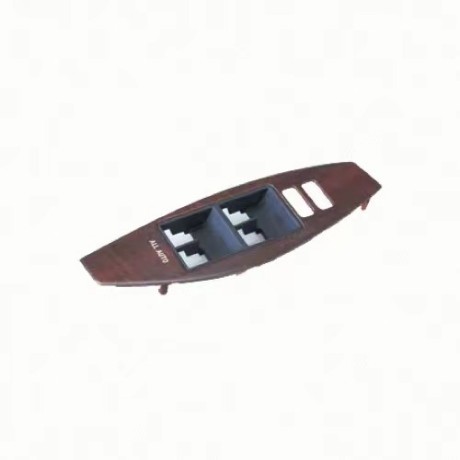

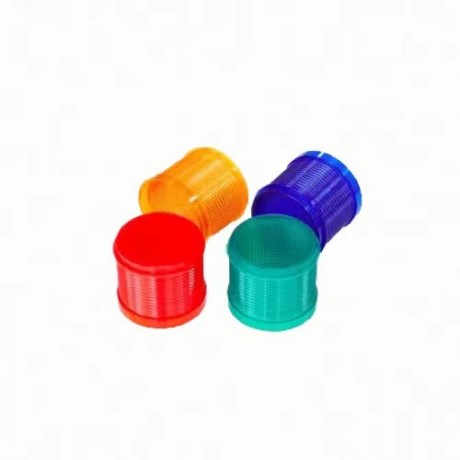

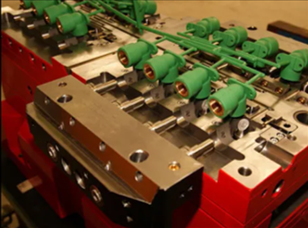

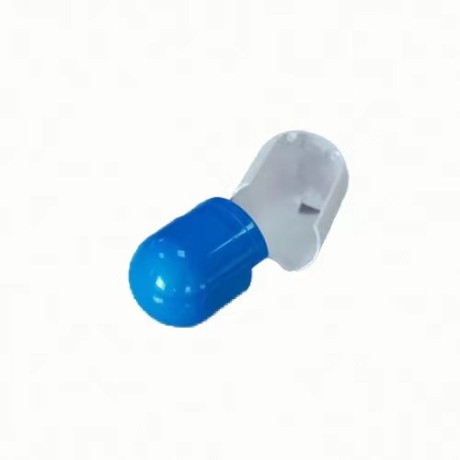

Gallery of Plastic Injection Molds& Product parts

Experienced Engineers

Advanced Facilities

Our injection molding engineers have rich experience after handling thousands of projects; whichever parts they come across, they can get the correct parameters immediately.

We can make the most precise moldings using imported and top-brand local injection molding machines.

Unlimited Capacities

Tight Tolerances

Aside from our in-house facilities, we have built up strong networks with our partners. Full fleets of metal and plastic injection molding machines, from 10 to 1000 tons are ready for your orders without delay.

As an ISO-certified company, our standard tolerances are defined by ISO 2768 standards. We offer a range of injection mold tooling tolerances to meet your requirements. Based on your design, we can reach tight tolerances up to +/-0.02mm.
